Description
CR 7 reversible plate compactor – superior impact power and economical
Engine: Honda GX 390 / Hatz 1B40
The CR 7 Honda and CR 7 MDM* are economical machines that deliver powerful compacting performance. They are available with a Hatz diesel engine or Honda gasoline engine.
For a wide variety of applications ranging from road construction and civil engineering to paving the CR 7 is the machine of choice.
Its balanced running characteristics and exceptionally smooth operation as well as its low hand-arm vibrations provide for superb ease of use.

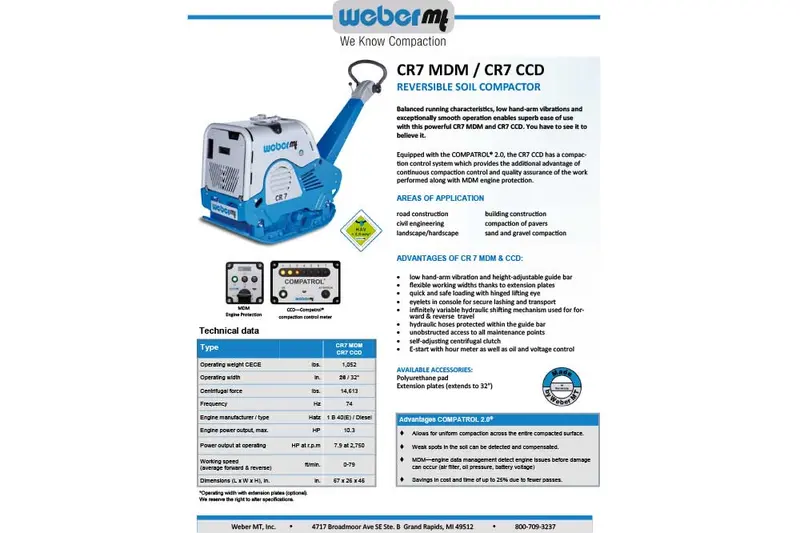

CR 7 CCD* is equipped with the COMPATROL® 2.0 compaction control system thus providing the additional advantage of continuous compaction control and quality assurance of the compaction work performed along with MDM engine protection.

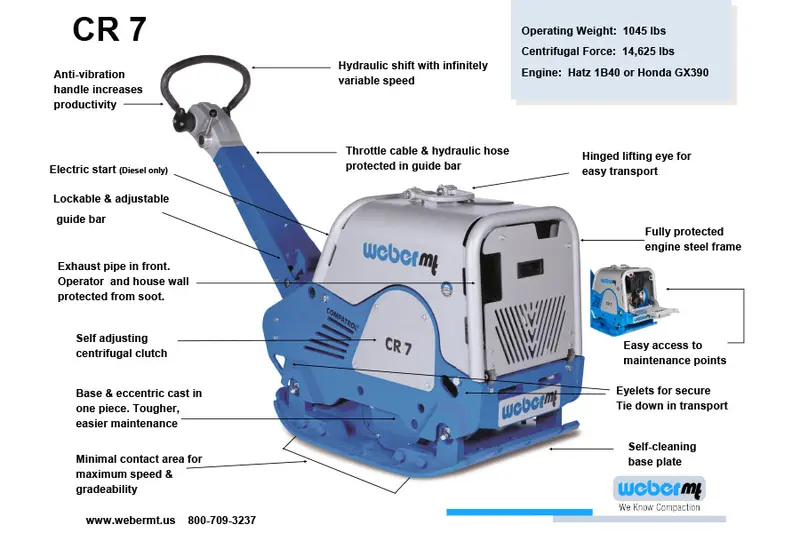

The standard CR 7 includes:
- low vibration guide bar
- height-adjustable guide bar
- hydraulic shift / infinitely variable forward and reverse travel
- fully protected engine thanks to protection frame and engine enclosure
- unobstructed access to all maintenance points
- self-adjusting centrifugal clutch
- E-start*
Looking to Finance this Compactor? It’s quick and easy. Click here to apply.
** All CCD units – batteries are shipped dry
| Item# | Model | Engine | Wgt./lbs | CF/lbs | Hz | W (in) |
|---|---|---|---|---|---|---|
| 115510 | CR 1-II HD | GX120 | 203 | 3372 | 100 | 14 |
| 115614 | CR 2 HD | GX160 | 315 | 5620 | 100 | 18 |
| 116144 | CR 3-II HD | GX270 | 448 | 7868 | 80 | 20 |
| 116263 | CR 5-II HD | GX270 | 617 | 10150 | 75 | 22 |
| 116538 | CR 6 HD | GX390 | 794 | 12364 | 72 | 24 |
| 116540 | CR 6 HD CCD | GX390 | 855 | 12364 | 72 | 24 |
| 116641 | CR 7-II HD | GX390 | 937 | 14613 | 74 | 26 |
| 116645 | CR 7 HD CCD | GX390 | 948 | 14613 | 74 | 26 |
| 116643 | CR 7 E1 MDM | Hz 1B50 (E) | 1052 | 14613 | 74 | 26 |
| 116644 | CR 7 E1 CCD 2.0 | HZ 1B50 (E) | 1052 | 14613 | 74 | 26 |
| 116737 | CR 8 E1 MDM | HZ 1D90 (E) | 1334 | 16860 | 67.5 | 28 |
| 116738 | CR 8 E1 CCD 2.0 | HZ 1D90 (E) | 1334 | 16860 | 67.5 | 28 |
| 116828 | CR 9 E1 MDM | HZ 1D90(E) | 1631 | 22480 | 65 | 30 |
| 116829 | CR 9 E1 CCD 2.0 | Hz 1D90(E) | 1631 | 22480 | 65 | 30 |
| 116831 | CR9 HD CCD | GX630 | 1631 | 22480 | 65 | 30 |
Preparing an electric start WeberMT compactor
